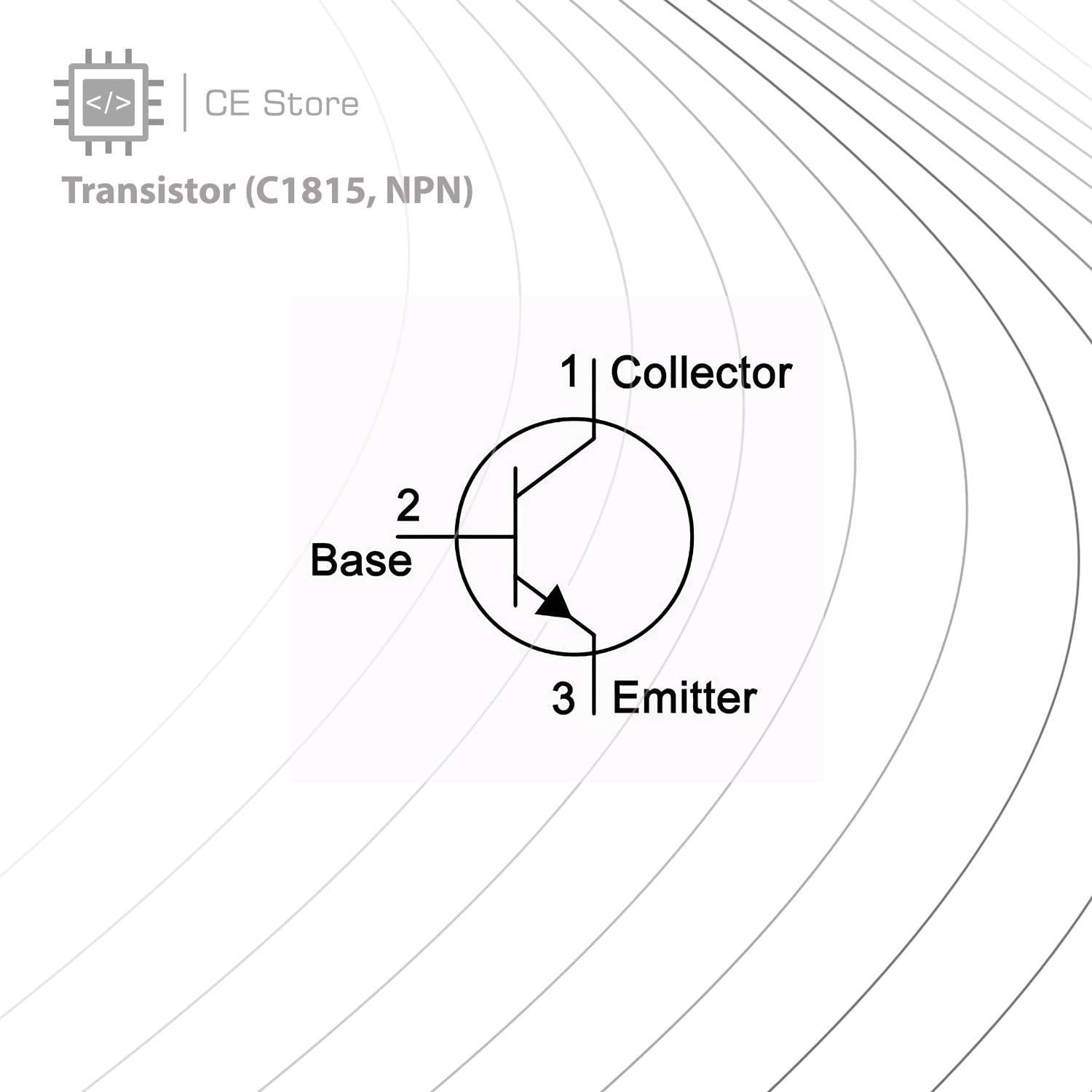

Transistor (C1815, NPN)

Features :

• General Purpose NPN Transistor
• DC Current Gain (hFE) 70 to 700
• Continuous Collector current (IC) is 0.15A
• Collector-Emitter voltage (VCE) is 50V
• Collector-Base voltage (VCB) is 60V
• Transition Frequency: 80MHz
• To-92 Package

Equivalent NPN Transistor: 2SC2712, 2SC4116, 2SC4738

Where to use 2SC1815

The C1815 is a general purpose NPN transistor that is commonly used in Amplifier applications. There are four variants, the 2SC1815O will have a gain value of 70 to 140 and the 2SC1815Y will have 1020 to 240, the 2SC1815GR will have 200 to 400 and the 2SC1815L will have a gain range from 350 to 700.

This NPN transistor also has its counterpart PNP transistor the 2SC1015, which makes it ideal for Push-pull and class B amplifier designs. Apart from this the transistor can also be used for switching low power devices.

Applications

• General purpose switching
• Class B amplifiers
• Pre-amplifier circuits
• Push-Pull configuration circuits
