Power Supply Module
Showing all 26 results
- Electronic Parts, Module, Power Supply Module
AMS1117-3.3V Voltage Regulator Module
Out of stock- 3.3V Output
- 5V Input. Can use higher input voltages, but see our notes below about derating the current at higher voltages
- 800mA maximum rated current. 500mA recommended max
- Power LED
- Short circuit and thermal protection built-in
- Small footprint
SKU: EAP-000880 - Electronic Parts, Module, Power Supply Module
AMS1117-3.3V Voltage Regulator Module
Out of stockThis voltage regulator module is based on the AMS1117 3.3V regulator. It is capable of regulating a wide range of input voltage (4.0 to 12V) down to a fixed 3.3V output at up to 1A (Vin = 4.5V). Standard 0.1″ header pins provide a means of connecting to its input and output terminals. These header pins have also been conveniently placed so that the module can be inserted face down into standard.
SKU: EAP-000911 - Electronic Parts, Module, Power Supply Module
Breadboard Power Supply Module(3.3V, 5V)
59 in stock- Breadboard power supply module, compatible with 5V, 3.3V.
- Apply to MB102 breadboard
- Input voltage: 6.5-12 V (DC) or USB power supply
- Output voltage: 3.3V/5V can switch over
- Maximum output current: <700 ma
- Fluctuation two road independent control can switch over to 0 V, 3.3 V, 5 V
- On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
SKU: EAP-000643 - Electronic Parts, Module, Power Supply Module
DC 12V to 3.3V,5V and 12V Power Supply module
20 in stock- Output power on/off switch
- Two-row multiple pin outputs, easy to use and connect
- Red LED illuminates when input DC power is supplied and output is turned ON.
- Small and Handy Module.
- Dual-side plate design.
- Easy to use.
SKU: EAP-000515 - DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items
DC-DC Step-up Adjustable Power Supply Module (150W, 6A)
In StockDIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsDC-DC Step-up Adjustable Power Supply Module (150W, 6A)
64 in stock- Input voltage :10-32V
- Output voltage: 12-35V (adjustable)
- Output Current: 10A (MAX)
- Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
- The non-isolated step-up power conversion module
- Onboard LED illuminates when the voltage is applied to the module
SKU: EAP-000758 - DIY Items, Electronic Parts, Module, Power Supply Module
HI-LINK Power Supply (12V,1.6A)
4 in stock- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
SKU: EAP-000363 - DIY Items, Electronic Parts, Module, Power Supply Module
HI-LINK Power Supply (5V,2A)
10 in stock- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
SKU: EAP-000362 - DIY Items, Electronic Parts, Module, Power Supply Module
HIECUBE Dual Power Supply (5V/12V, 36W)
In StockDIY Items, Electronic Parts, Module, Power Supply ModuleHIECUBE Dual Power Supply (5V/12V, 36W)
4 in stock- Input voltage: 85-265VAC / 100-370VDC
- Output voltage, Vout1: 5V DC
- Output voltage, Vout2: 12V DC
- Output current, Vout1: 0.5A
- Output current, Vout2: 3.0A
- Power Max: 5W
- Output voltage accuracy: ± 1%
- Size (L x W x H): 48 * 36 * 23mm.
SKU: EAP-000361 - Battery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items
IP5328P Power Bank Module with 5V 9V 12V Step up Fast Quick Charging (5V 3.1A, QC2.0 QC3.0, Dual USB Output, Micro and Type-C Input)
In StockBattery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsIP5328P Power Bank Module with 5V 9V 12V Step up Fast Quick Charging (5V 3.1A, QC2.0 QC3.0, Dual USB Output, Micro and Type-C Input)
30 in stock- Input: Type C or Micro USB fast charging capable
- Output: 5V-3.1A, 7V-2.4A, 9V-2.0A, 12V-1.5A | Output Interface: Dual USB PD output and Type C PD
- Chipset: IP5326P; 4 onboard SMD LED to display battery charge level
- Output Interface: USBA + USBA + TYPE-C support fast charge output (see protocol specification fast charge)
- Overcharge protection | Overdischarge protection | Overcurrent protection
- Size : 64*32*6mm (L*W*H)
SKU: EAP-001025 - DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items
LM2596S DC-DC Step-down Adjustable Power Supply Module
In StockDIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsLM2596S DC-DC Step-down Adjustable Power Supply Module
20 in stock- Model:LM2596S
- Input voltage: 4-32V
- Output Voltage: 1.5-30V (adjustable)
- Output current: rated current 2A, maximum 3A (heat sink required)
- Conversion efficiency: Up to 92% (the higher the voltage, the higher the efficiency)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short circuit protection: current limiting
- Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less)
- Full load temperature rise: 40 ℃
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Output ripple:
- Input 12V Output 5V 3A 60mV (MAX)
- Input 24V Output 12V 3A 120mV (MAX)
- Input way: IN+, IN-
- Output way: OUT+, OUT-
SKU: EAP-000508 - Battery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items
Power Bank Module with Temperature Circuit Protection (5V 4.5A 22.5W, QC3.0 QC4.0, Dual USB Output, Micro and Type-C Input)
Stock outBattery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsPower Bank Module with Temperature Circuit Protection (5V 4.5A 22.5W, QC3.0 QC4.0, Dual USB Output, Micro and Type-C Input)
Out of stock- Package:Â QC4.0+PD3.0
- Model Number:Â 5V 4.5A 22.5W Mobile Power Bank
- Operating Temperature:Â 18650 Charging Module
- Dissipation Power:Â 22.5W Power bank
- Supply Voltage:Â Circuit Protection
- Type:Â Voltage Regulator
- Type-C USB Mobile Power Bank
- Size: 72*27*6mm (L*W*H)
SKU: EAP-001024 - DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items
UPS Module (5V,1A)
7 in stock- Input: above 5V1A
- Output: 5V1A (max)
- Battery: polymer lithium battery, 18650 lithium battery. (The recommended capacity is below 10000ma)
- Input terminal: reverse connection protection, input overvoltage protection, automatically cut off the input power when the input exceeds 6V and switch to battery power supply mode.
- Battery terminal: Reverse connection protection Short circuit protection Reverse connection will not be damaged during charging. When the external power input exceeds 20v, the protection unit will be broken down.
- Output terminal: It can only supply ordinary loads, and cannot be connected to other power adapters, and it will burn if connected reversely. The output is short-circuited and it will not sleep when the load is small.
- Size: 33*17mm
SKU: EAP-001120 - DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items

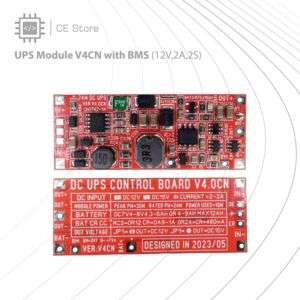

UPS Module V4CN with BMS (12V,2A,2S)
In StockDIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsUPS Module V4CN with BMS (12V,2A,2S)
74 in stock- Product Name:24W DC UPS Module
- Input Current: 2-3A
- Input Voltage: DC 12V/15V
- Output Voltage: DC 12V/15V
- Output Power: 24W (Max)
- Applicable Battery:7.4V-8.4V
- Battery Capacity:12Ah (Max)
- BMS: Yes (2S)
SKU: EAP-001118 - Battery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items
UPS Power Supply Module for 3.7V Li-ion Battery (5-12V Input, 9/12V Output, 12W)
In StockBattery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsUPS Power Supply Module for 3.7V Li-ion Battery (5-12V Input, 9/12V Output, 12W)
6 in stockUPS Voltage Converter Module
- Working Voltage: DC 5.0V-12.0V
- Output Voltage: DC 9/12.0V
- Output Power:9W/12W
- Support Battery(No include!):3.7V Lithium or polymer battery 15Ah(Max)
- Working Temperature range:-40℃~85℃
- Working Humidity range:0%-95%RH
- Size:50*20*6.3mm (L*W*H)
- Connect right input voltage at input terminal.
- Check output voltage by voltmeter and ammeter.
- Connect battery at B+ and B-.
SKU: EAP-001026 - Battery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module
UPS Power Supply Module v2.0 for 3.7V Li-ion Battery (5-12V Input, 9/12V Output, 12W)
In StockBattery Charging Module, DIY Items, Electronic Parts, Module, Power Supply ModuleUPS Power Supply Module v2.0 for 3.7V Li-ion Battery (5-12V Input, 9/12V Output, 12W)
178 in stock- Product Name:12W DC UPS Module
- Input Voltage: DC 5V-12V
- Output Voltage: DC 9V/12V
- Output Power: 12W (Max)
- Applicable Battery:3.7V-4.2V
- Battery Operation Data: start-up voltage 3.2V/working voltage 3.7V/discharge cut-off voltage 2.8V-2.9V/full voltage 4.2V
- Battery Capacity Range: 3Ah-15Ah
- No-load Power: 180uA-280uA
- Recommendations for Power Supply Matching: devices within 9V 1.5A or 12V 1A
- Work Temperature:-25℃~85℃
- Work Humidity:5%~95%RH
- Size:50*20*6.5mm (L*W*H)
SKU: EAP-001027 - Battery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items
XH-M240 18650 Li-ion Battery Capacity Tester
In StockBattery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsXH-M240 18650 Li-ion Battery Capacity Tester
5 in stock- Model: XH-M240
- Display accuracy: 0.1
- Measurement accuracy: 1mAH
- Power supply: DC 5V-12V/18650 battery (Not included)
- Standby current: 5-7mA
- Discharge current: About 500mA
- Load power: 10W, 8Ω
- Installation hole: 3mm
SKU: EAP-001022 - DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items
XL6009 DC-DC Step-up Adjustable Power Supply Module
In StockDIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsXL6009 DC-DC Step-up Adjustable Power Supply Module
186 in stock- The performance is much higher than LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Low ultra wide input voltage 3 v ~ 32 v, the best is 5 ~ 32 v working voltage range;
- Low ultra wide output voltage 5 v ~ 35 v
SKU: EAP-000762 - DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items
XL6009 DC-DC Step-up/down (Boost-Buck) Adjustable Power Supply Module
In StockDIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsXL6009 DC-DC Step-up/down (Boost-Buck) Adjustable Power Supply Module
95 in stock- Automatic Buck Boost Converter
- Output Current: 4A
- Switching Frequency: 400 Khz
- Input Voltage: 3.8V to 32V
- Output Voltage: 1.25V to 35V
- Conversion Efficiency: <94%
- Non Isolated Buck Boost Converter
- Dimensions: 48 x 25 x 14mm (L x W x H)
Applications:
- Solar Cell
- Car Regulator
- Wind Power
SKU: EAP-001086
